Hybrid Inverter 3000W 24VDC
Ref. 117-07
1100,00 $1295,00 $
See pricing for companies with an account(0 reviews)
- Model M3000H-24LH
- 3000W output, 24 VDC 120VAC
- Built-in 80A MPPT solar charge controller
In stock
1
Description
- 3000W, 24V DC, 120V AC, pure sine wave
- Built-in 80A MPPT solar charge controller
- Built-in 60A AC battery charger
- Surge power 6000VA
- Maximum PV power 2250W
- Maximum open-circuit voltage 145VDC
- MPPT operating voltage range 60-115VDC
- Transfer time 10ms
- 2 units in parallel provide 120V/240V
- Up to 6 units in parallel
- Wi-Fi/GPRS remote monitoring included
- Charges all battery types
- RS485 communication port for BMS
- Dimensions : 455 x 295 x 130mm
- Weight 11.5K
- Communication ports : USB/CAN/RS485
- Certification CE, IEC 62109-1-2

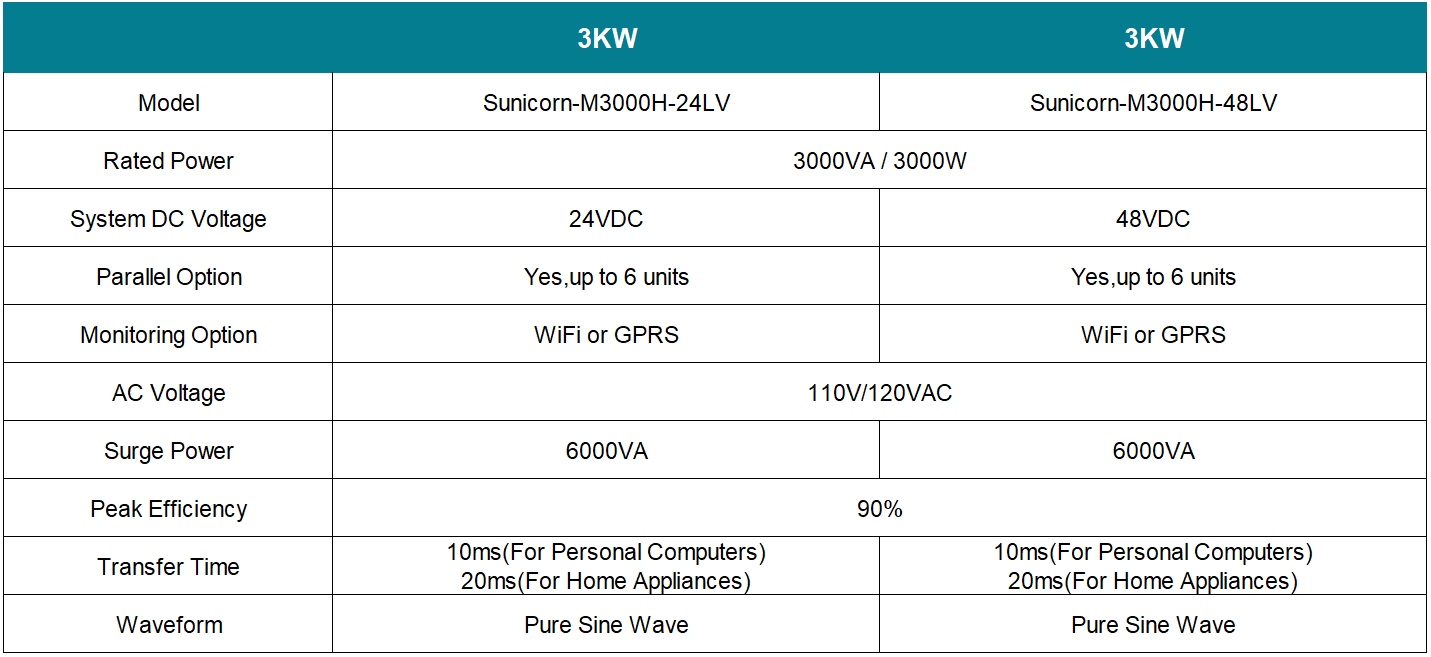

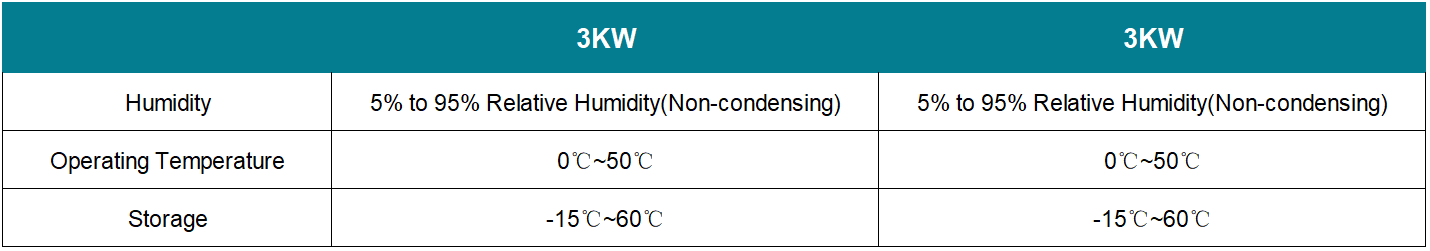

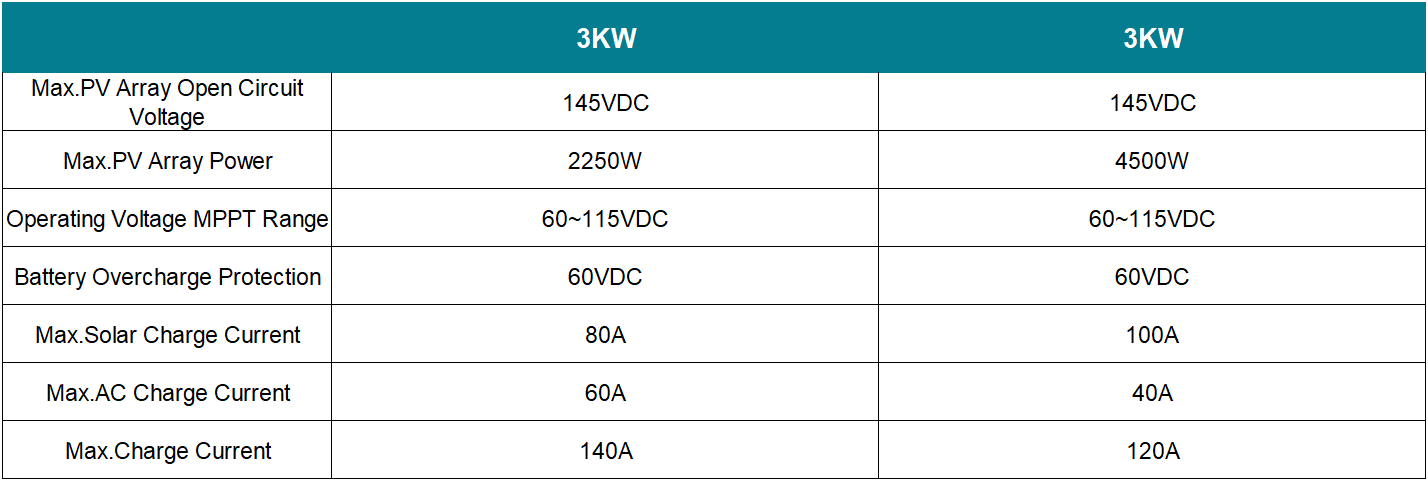

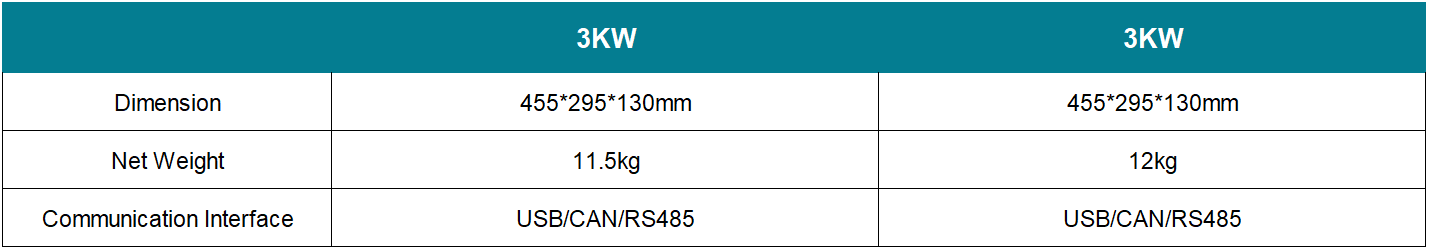

Manufacturer's technical information in English
Technical document #1
Additional information
| Weight | 13.5 kg |
|---|---|
| Dimensions (L × W × H) | 58 × 38 × 22 cm |
